RHD-series

For heavy loads and maximum visibility

RHD-Series

Features

High performance
Maximum visibility
Heavy-Duty design
Low service costs

The RHD-series is designed for tough environments. Oversized construction, the highest quality components, and protected piping are parts that contribute to making this a heavy-duty attachment. A perfect partner for harsh climates and where there are very high demands on reliable operation. On the other end, you can also benefit from low service costs and a long service life.

The forks are roller-mounted using 6 rollers on each fork (4 up and 2 down). The attachment sideshifts easily and gives a precise load handling, even with full load.

The visibility for the driver is outstanding, contributing to a safer workplace, a more efficient material handling and reduces the risk for damaging goods.

The product family consists of several series:

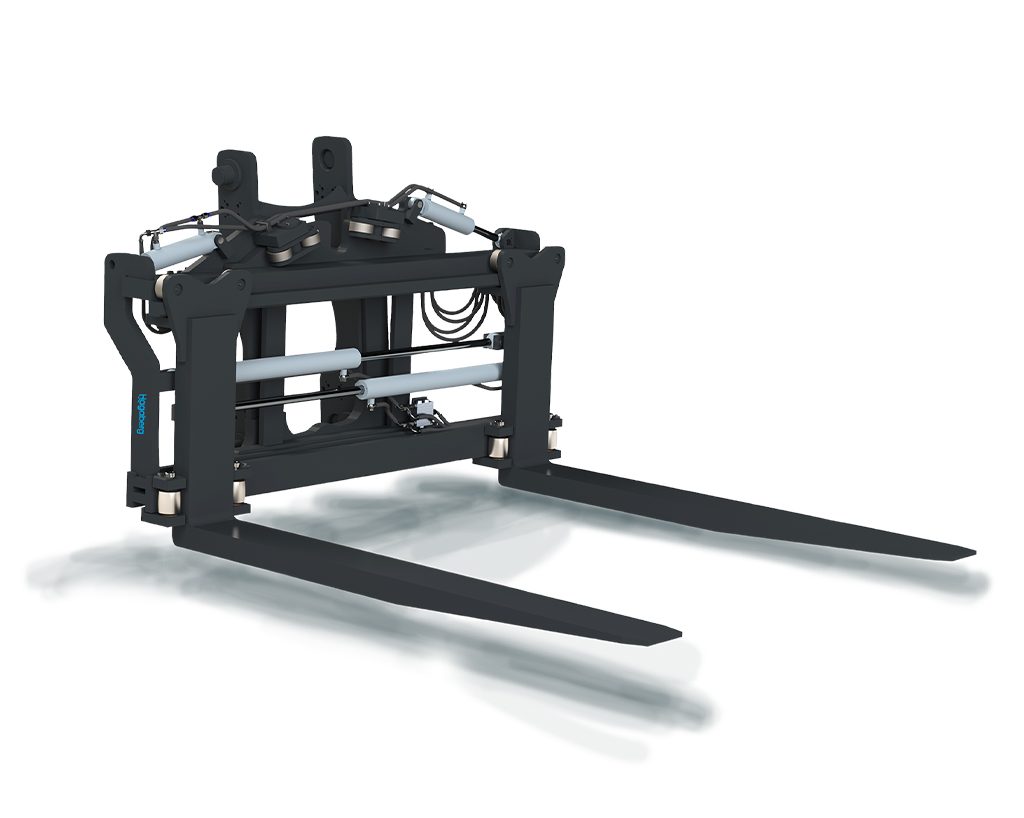

RPHD-SERIES

ROBUST WITH POWERED PILE SLOPE

RPHD is a variant av the RHD-series with a powered pile slope function allowing the positioner to slope ± 5 degrees. The visibility for the driver is outstanding, contributing to a safer workplace, more efficient material handling, and reducing the risk of damaging goods. RPHD is an excellent choice for the wood industry and where you need to compensate for uneven terrain or goods that are difficult to balance.

RHD-L-SERIES

MAXIMUM VISIBILITY AND LEVELLING FORK

RHD-L is a system solution, a combination of a RHD-series fork positioner and a Lift-Drop fork, that gives the ability for level compensation. This solution is an alternative to the power pile slope positioner and allows levelling of ±100 mm. You can choose to have the levelling fork to be installed on the right or on the left side. Furthermore, we offer both 1- and 2-cylinder alternatives.

The standard 1-cylinder alternative gives maximum protection to the hydraulic cylinder and is the first-hand choice. The optional 2-cylinder alternative comes into play when you have limitations by a ceiling or other structure where you need to keep the height of the Lift-Drop fork as low as possible.

The Lift-Drop fork will allow you to compensate for uneven terrain or goods that are difficult to balance.

Adaptions

Adapt the attachment with forks of desired length or with hydraulic functions like reach forks or lift-drop forks. Add cameras and sensors for increased functionality, safety, and efficiency. CarrierPlates and CarryAll increase the versatility of the attachment's usage. Pressure relief valve, load backrest and load protector can be added as options or retrofitted.
