Vehicle Cameras

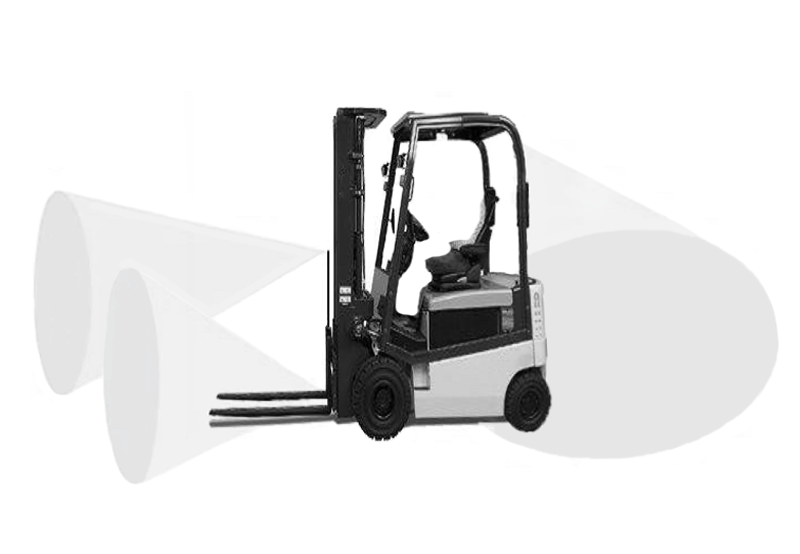

HCB camera solutions eliminate blind spots and obstructed views. Built for outdoor operation, the cameras feature impact-resistant aluminium housings and waterproof connectors.
The standard display is a 7-inch monitor, to which various camera options can be connected. Choose between wide-angle, standard, or telephoto lenses.
Battery-powered wireless systems are also available, removing the need for mast cables. Video can be recorded using lockable DVR units that save everything the cameras see. The systems operate on voltages from 12 to 80 V.
In addition to cameras mounted on our fork positioners, we also offer complete rear-view camera kits.

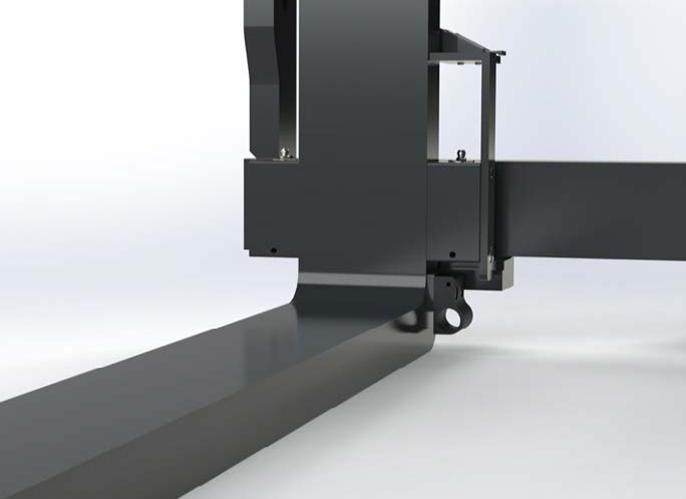

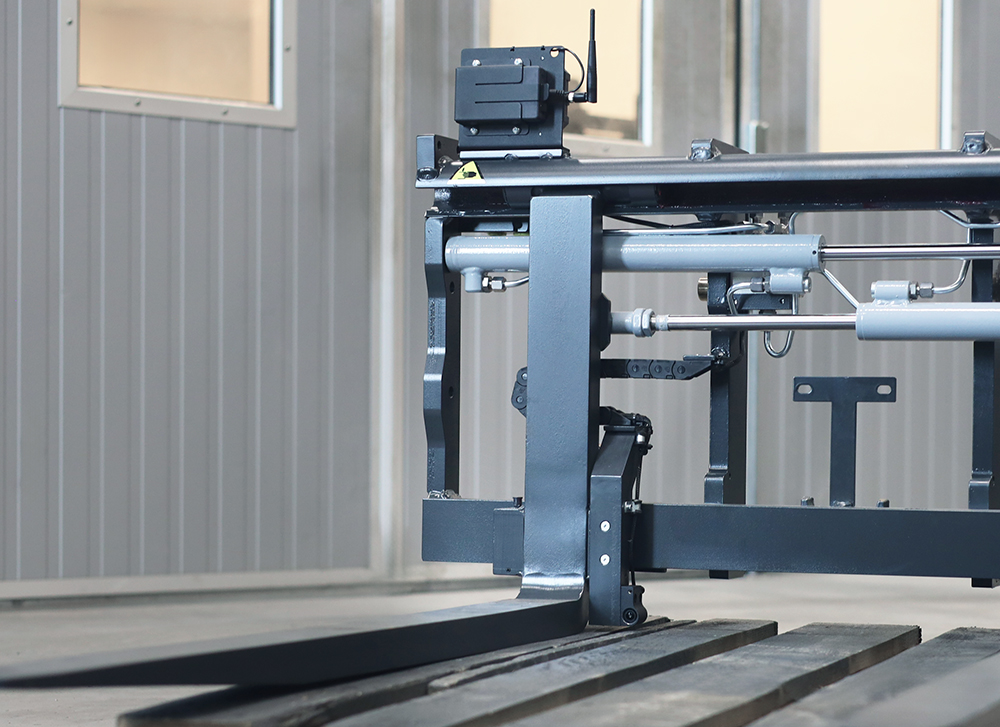

Fork camera
See Along the Forks
A fork-mounted camera gives the operator a clear line of sight along the forks, ensuring precise control of the fork tips when entering a pallet.
This solution offers a simple yet highly effective way to improve safety with every lift and reduce load-handling damage. It is particularly useful for deep stacking and for placing loads at great heights, where accuracy is critical.

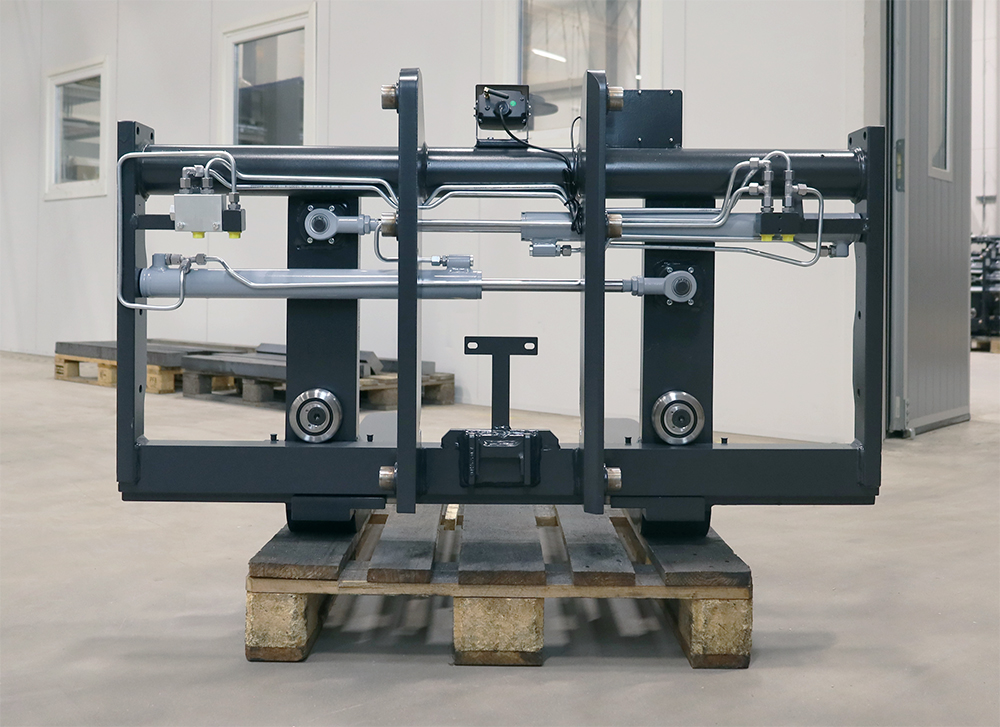

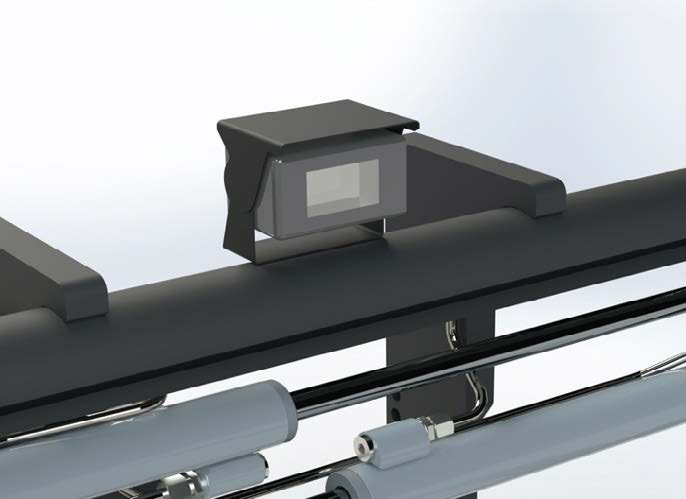

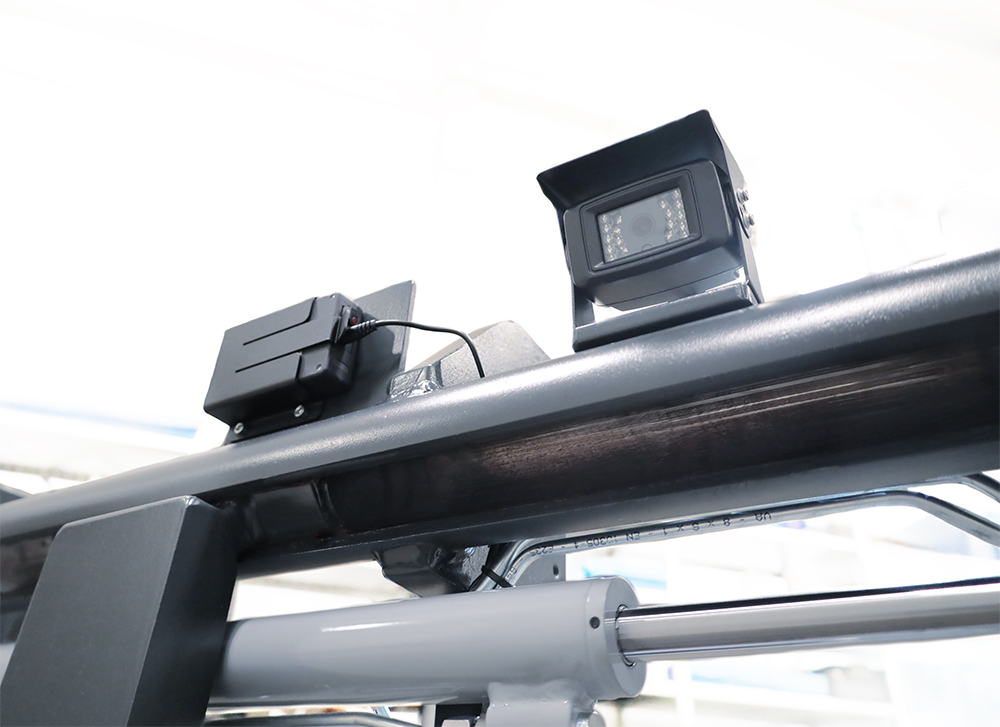

Frame camera
Clear view over the load
A frame-mounted camera, fitted on the C-pipe or upper beam, moves the operator’s sightline forward – past the mast and fork positioner. The truck’s monitor shows an unobstructed view of the load.
With wide-angle optics, the camera also improves the operator’s awareness of the area around the load. Especially valuable when handling wide or protruding goods.
